Accessories

Micro-Radian manufactures several accessories for use with our autocollimators. In addition to the standard accessories, we are capable of producing almost any custom item requested, or modifying our existing products for your specific application.

header

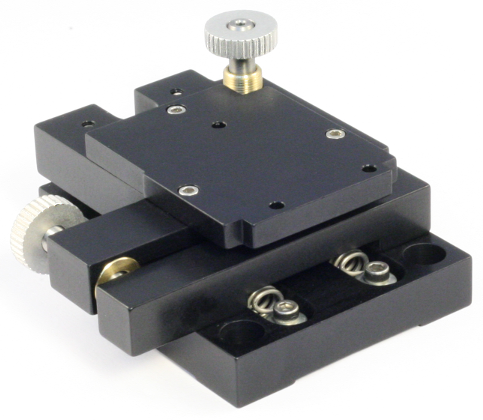

Two-Axis Stand S40 S40 Spring-loaded, two-axis stand with fine 100-pitch adjustment screws for each axis T15, T15D, T30, T30D, T40, T40D, T60, T60D 1

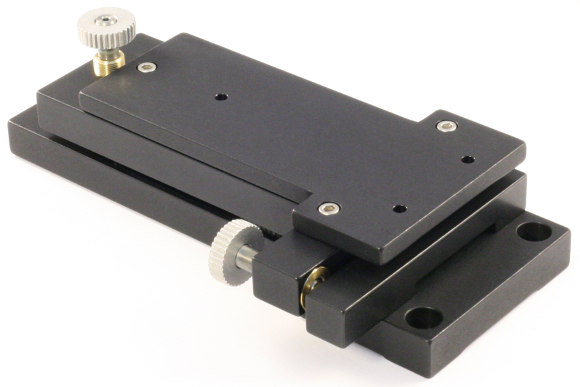

Two-Axis Stand S100 S100 Spring-loaded, two-axis stand with fine 100-pitch adjustment screws for each axis T100, T100D, T100HR, T100HRD, T160, T160D, T160HR, T160HRD, TL40, MRA-50, CCD-100D 1

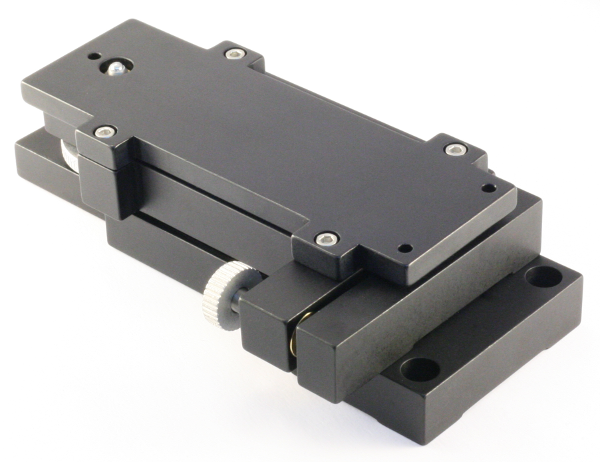

Two-Axis Stand SL160 SL160 Spring-loaded, two-axis stand with fine 100-pitch adjustment screws for each axis TL100, TL100D, TL160, TL160D 1

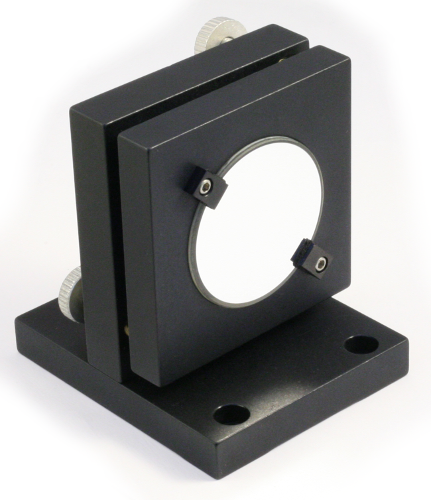

Two-Axis Mirror M100 M100 Precision, two-axis adjustable mirror mount with 50mm diameter, >93% reflective, 1/10 wave optical quality mirror T100, T100D, T100HR, T100HRD, T160, T160D, T160HR, T160HRD
Cable C100S   Extension interconnecting cable for E3 based autocollimators, available in any length T15, T30, T40, T60, T100, T100HR, T160, T160HR, TL40, TL100, TL160
Cable C100K   Optional Kapton-jacketed cable with overall metal braid shield and vacuum compatible connector, for use in low outgassing applications, available in any length All models
Feed-
Through
F210   Vacuum compatible bulkhead feed-through, designed for use with C100K cable All models
